ZMCT103C AC Current Sensor Module

ZMCT103C AC Current Sensor Module

  • Current Ratio: 5 A:5 mA
  • Rated Primary Current at 50/60 Hz: 5 A
  • Winding D.C. Resistance at 20 °C: 155 Ω
  • Maximum Primary Current at 50/60 Hz: 20 A
  • Transformer Turns Ratio: Np:Ns = 1000:1

Category:

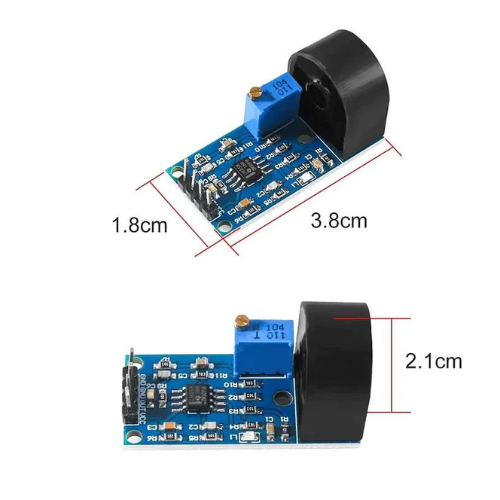

  • microcurrent precision current sensor is a module capable to measure a current level up to 5A. This current sensor module is based upon the ZMCT103C IC. The module has 4 output pins and provides an analog output corresponding to the AC current passing through the wire.

    Features

    ZMCT103C is a small size, high accuracy module with some features and specifications mentioned below:

    1. Current Ratio: 5 A:5 mA
    2. Rated Primary Current at 50/60 Hz: 5 A
    3. Winding D.C. Resistance at 20 °C: 155 Ω
    4. Maximum Primary Current at 50/60 Hz: 20 A
    5. Transformer Turns Ratio: Np:Ns = 1000:1
    6. Isolation Voltage: 4500V
    7. Onboard sampling resistor, to drop the voltage to lower levels
    8. Operating Temperature: -40 to 85 °C
    9. Pin Length of the secondary coil (encapsulation) > 3mm
    10. Epoxy Encapsulation



    Applications of ZMCT103C Current Sensor Module

    Below are some of the applications of the ZMCT103C current sensor module:

    1. Measuring AC currents
    2. Monitor any current surges
    3. Ground fault detection
    4. Household electrical equipment

    Pin Configuration for ZMCT103C Current Sensor Module

    The ZMCT103C module has 4 pins, which are as follows:

    1. Ground (G)
    2. Ground(G)
    3. Signal Out
    4. VCC(+5V)

    Package Includes

    • 1 x ZMCT103C AC Current Sensor Module
